electricpy.visu.convbar

electricpy.visu.convbar(h, x, outline=True)[source]

Convolution Bar-Graph Plotter Function.

Generates plots of each of two input arrays as bar-graphs, then generates a convolved bar-graph of the two inputs to demonstrate and illustrate convolution, typically for an educational purpose.

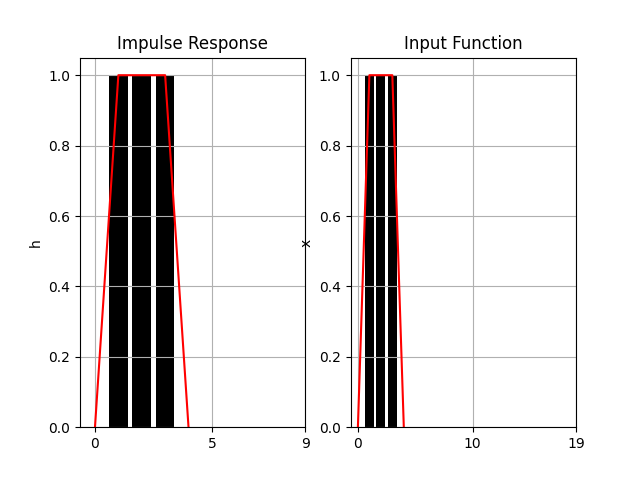

Examples

>>> import numpy as np
>>> import electricpy.visu as visu
>>> h = np.array([0, 1, 1, 1, 0])
>>> x = np.array([0, 1, 1, 1, 0])
>>> visu.convbar(h, x)
../_images/convbar-example.png
Parameters:

  • h (numpy.ndarray) – Impulse Response - Given as Array (Prefferably Numpy Array)

  • x (numpy.ndarray) – Input Function - Given as Array (Prefferably Numpy Array)
